Overview of 1.3 inch square display,
Z13001 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 240x240 resolution. IPS (In-plane Switching) technique make this 1.3" LCD module have a wider view angle. This Square TFT Screen is built-in ST7789V driver IC. This a-Si TFT LCD come with 4-wire SPI interface, 500 cd/m² brightness.
Specification of 1.3 inch square display,
Item | Specification | Unit |
| Display Size | 1.3 | inch |
| ZHUNYI Model | Z13001-6230RE-789V-Y2 | - |
| LCD Module Resolution | 240*RGB*240 | pixels |
| LCD Display Active Area | 23.40*23.40 | mm |
| LCM Display Dimension | 26.17*29.22*1.50 | mm |
| Touch Screen Dimension | - | mm |
| TFT Display Interface | SPI | - |
| Touch Panel/PCAP Interface | - | - |
| Display View Direction | Full Viewing Angle/IPS | - |
| Operating Temperature | -20°C~ 70°C | - |
| Storage Temperature | -30°C~ 80°C | - |

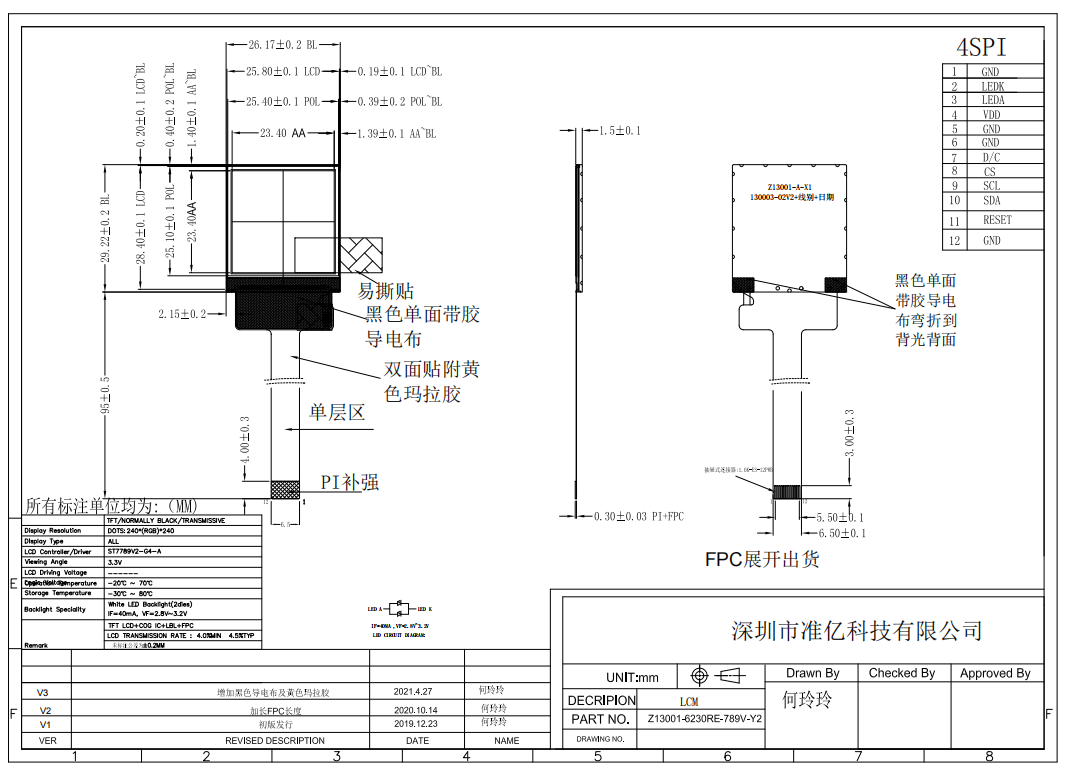

Outline dimension of 1.3 inch square display,
