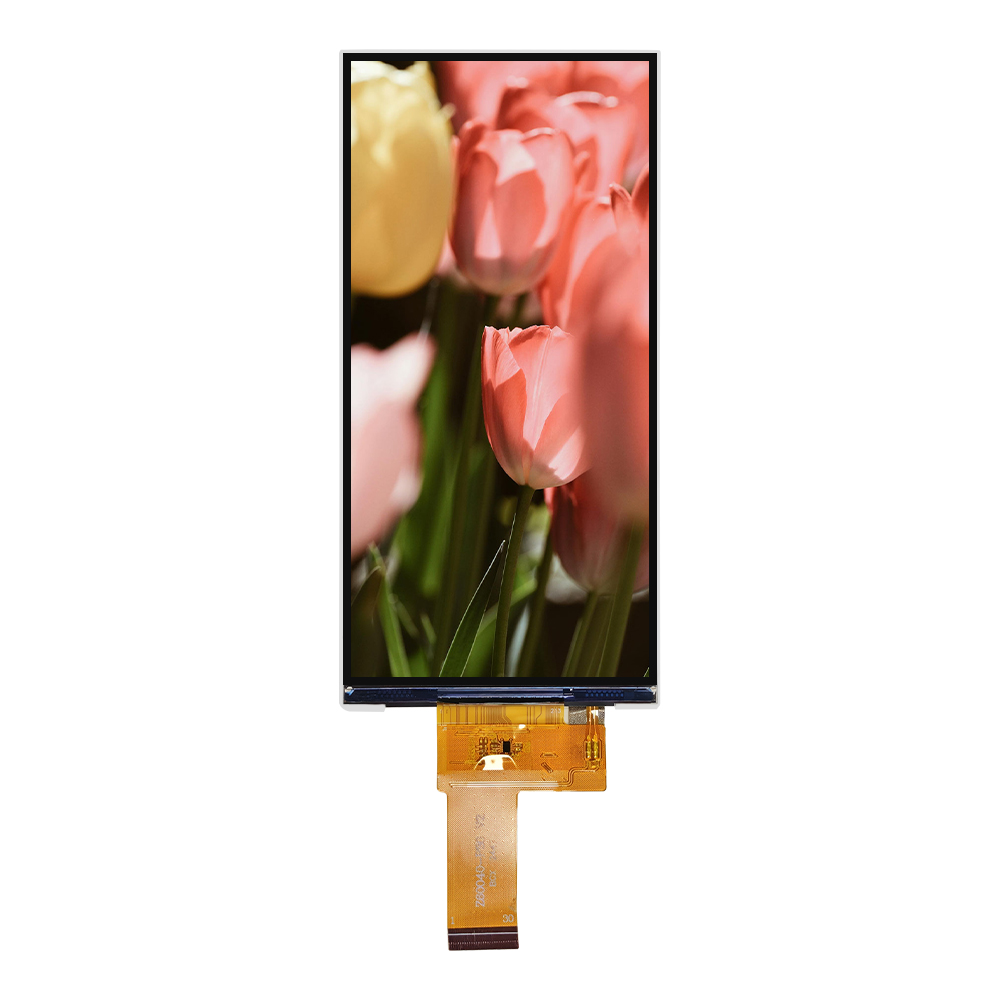

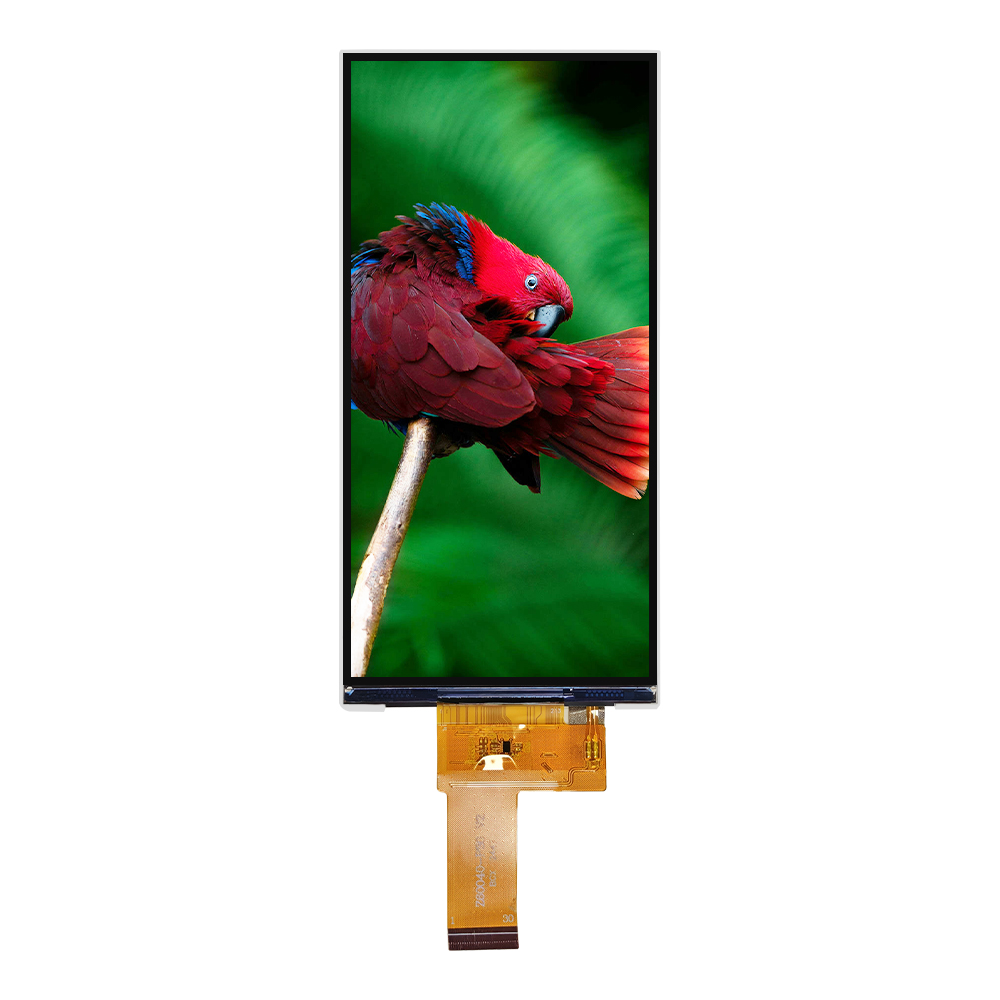

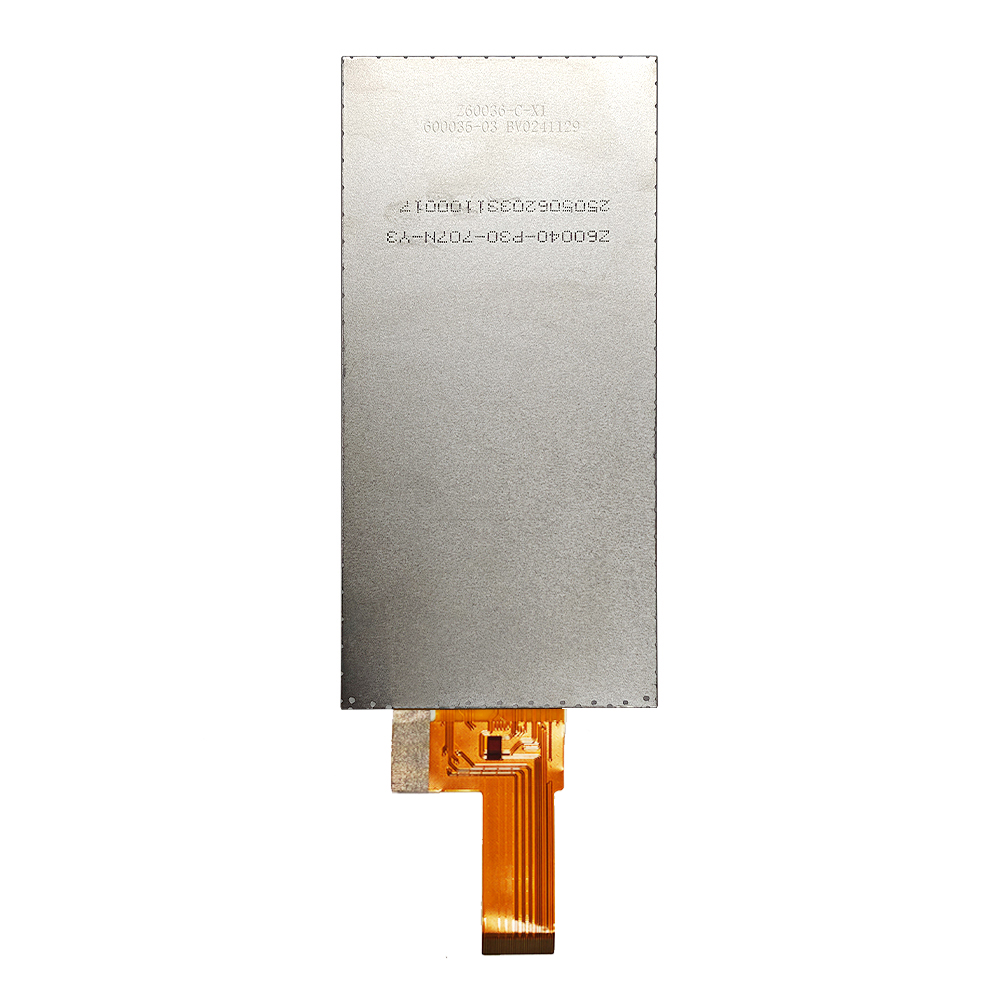

6 inch 720x1480 Resolution IPS LCD Display Panel

Z60040 is a color active matrix TFT liquid crystal display (LCD) with 720x1480 resolution. IPS technique make this 6.0" LCD module have a wider view angle.. This TFT Screen is built-in TL7707N driver IC. This a-Si TFT LCD can be made with SPI+RGB,MIPI interface. Support custom capacitive touch panel. This display is used on product like smart home, game player, PDA, navigation, IOT etc.

Basic specifications

Display Applications

Related Products

Basic specifications

Item

SpecificationUnit
Display Size6.0inch
ZHUNYI ModelZ60040-P30-707N-Y3-
LCD Module Resolution720*RGB*1480pixels
LCD Display Active Area66.74* 137.20mm
LCM Display Dimension70.50*145.20*2.08mm
Touch Screen Dimension-mm
TFT Display InterfaceMIPI-
Touch Panel/PCAP Interface--
Display View DirectionFull Viewing Angle/IPS-
Operating Temperature-20°C~ 70°C-
Storage Temperature-30°C~ 80°C-
