Overview of 2.4 inch IPS LCD Display,
Z24020-P40-I941-Y1 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) with 240*320 resolution. IPS (In-plane Switching) technique make this 2.4" LCD module have a wider view angle. This 4:3 TFT Screen is built-in ILI9341V driver IC. This a-Si TFT LCD come with MCU/SPI interface, 550 cd/m² brightness.
Specification of this 2.4 inch IPS LCD Display,
Item | Specification | Unit |
| Display Size | 2.4 | inch |
| ZHUNYI Model | Z24020-P40-I941-Y1 | - |
| LCD Module Resolution | 240*RGB*320 | pixels |
| LCD Display Active Area | 36.72*48.96 | mm |
| LCM Display Dimension | 42.72 *60.26 *2.50 | mm |
| Touch Screen Dimension | - | mm |
| TFT Display Interface | MCU/SPI | - |
| Touch Panel/PCAP Interface | - | - |
| Display View Direction | Full Viewing Angle/IPS | - |
| Operating Temperature | -20°C~ 70°C | - |
| Storage Temperature | -30°C~ 80°C | - |

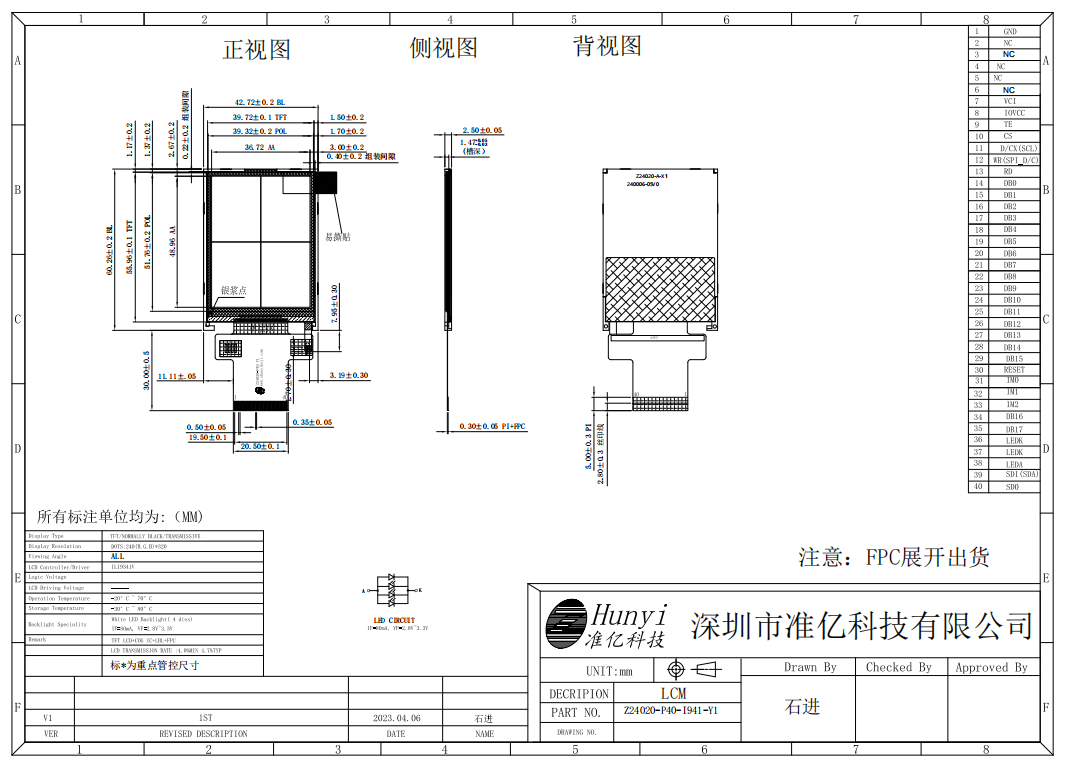

Outline Dimension of 2.4 inch LCD Display,
