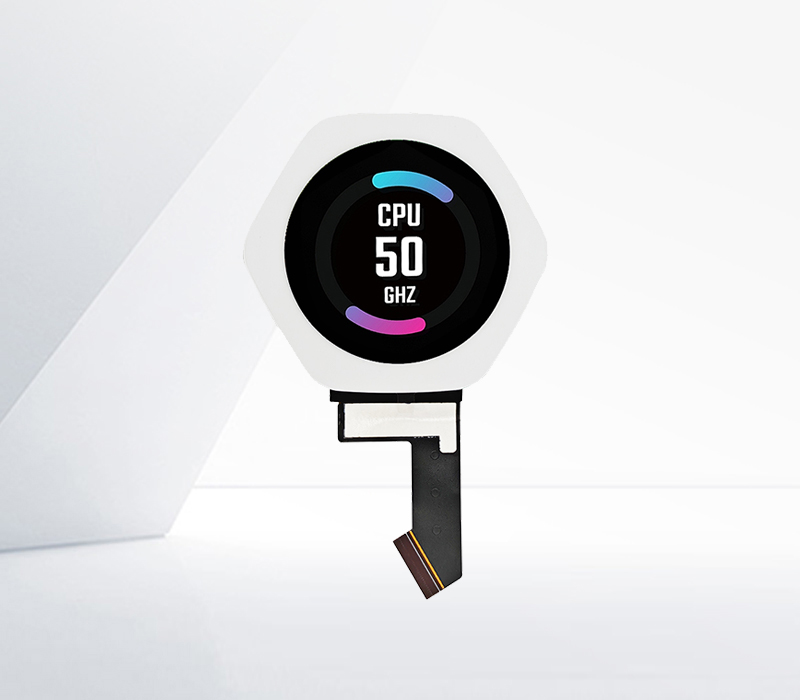

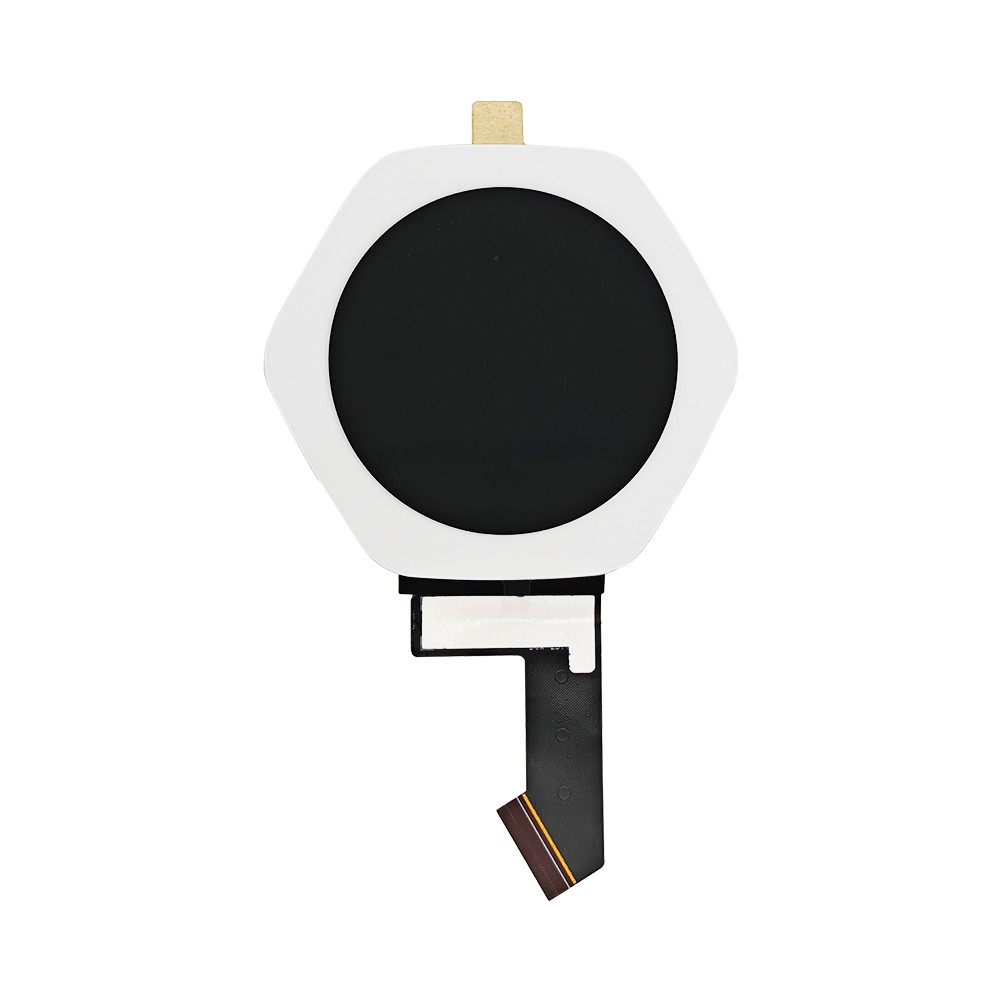

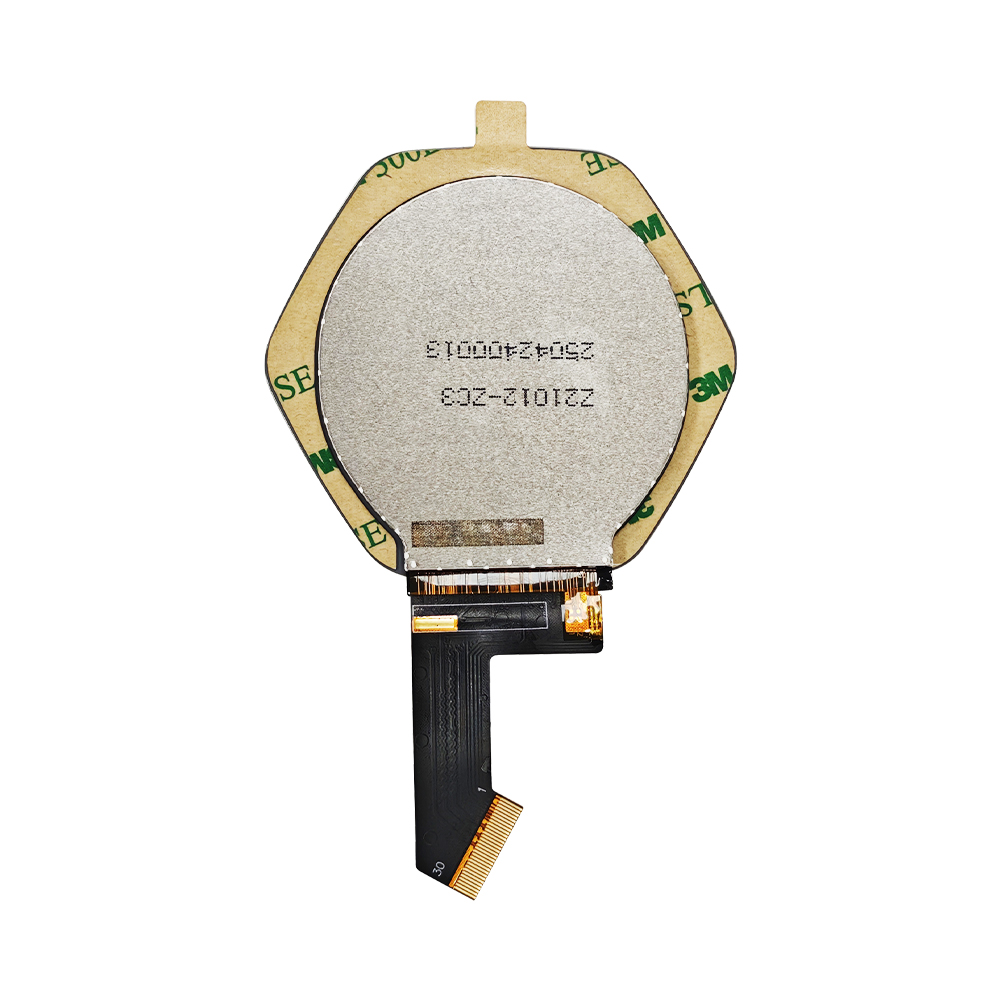

2.1 inch 480x480 Round LCD Display Module with Cover Glass

Z21012 is a color active matrix TFT liquid crystal display (LCD) with 480x480 resolution. IPS technique make this 2.1" LCD module have a wider view angle. This TFT Screen is built-in ST7701S driver IC. This a-Si TFT LCD can be made with SPI+RGB，MIPI interface. Support custom capacitive touch panel. This type of round screen is widely used in smart home, gear shifter, rotary knob, computer second screen etc.

: INQUIRE

Display Datasheet LCD Catalogue

Basic specifications

Display Applications

Basic specifications

Item	Specification	Unit
Display Size	2.1	inch
ZHUNYI Model	Z21012-P30-ZC3-B	-
LCD Module Resolution	480RGB480	pixels
LCD Display Active Area	53.28* 53.28	mm
LCM Display Dimension	56.18×59.71×2.26	mm
Touch Screen Dimension	-	mm
TFT Display Interface	MIPI	-
Touch Panel/PCAP Interface	-	-
Display View Direction	Full Viewing Angle/IPS	-
Operating Temperature	-20°C~ 70°C	-
Storage Temperature	-30°C~ 80°C	-
