Overview of 1.54 inch square display,
Z15002 with SPI/MCU interface and ST7789 driver IC is a compact and reliable display module designed for modern embedded applications. With its 240×240 high-resolution square format, it delivers sharp visuals, vivid colors, and smooth graphics in a small footprint. The ST7789 driver ensures stable performance and broad compatibility with popular microcontrollers and development platforms. Its unique 1:1 aspect ratio makes it especially suitable for smart devices, wearables, IoT products, and compact control panels where space-saving design and stylish UI are required.
Specification of 1.54 inch square display,
Item | Specification | Unit |
| Display Size | 1.54 | inch |
| ZHUNYI Model | Z15002-KFJ-789V-Y1 | - |
| LCD Module Resolution | 240*RGB*240 | pixels |
| LCD Display Active Area | 27.72*27.72 | mm |
| LCM Display Dimension | 31.52*33.72*1.94 | mm |
| Touch Screen Dimension | - | mm |
| TFT Display Interface | MCU | - |
| Touch Panel/PCAP Interface | - | - |
| Display View Direction | Full Viewing Angle/IPS | - |
| Operating Temperature | -20°C~ 70°C | - |
| Storage Temperature | -30°C~ 80°C | - |

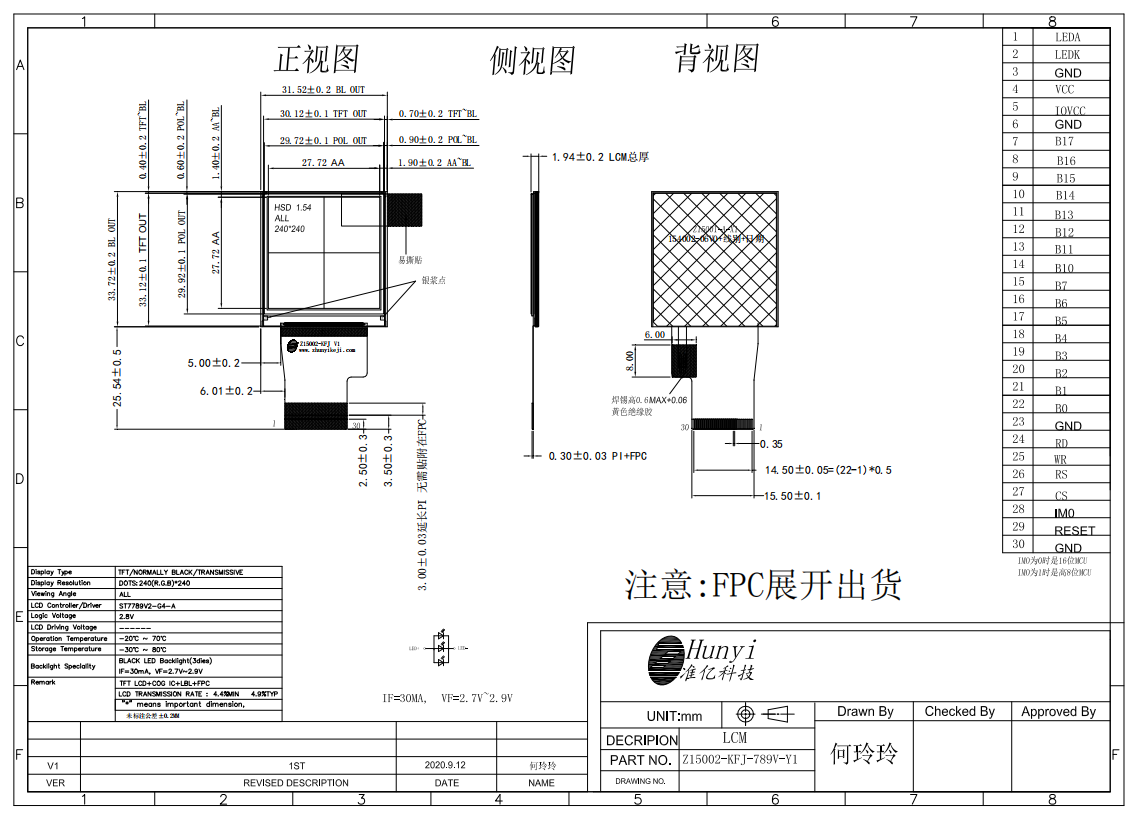

Outline Dimension of this 1.54 inch square display,
Advantages of 1.54 Inch 240×240 Square LCD Display,
Compact & Stylish Square Format
Unique 1:1 aspect ratio ideal for modern UI layouts, smart gadgets, and wearable devices.
High Clarity in Small Size
240×240 resolution provides sharp text, clear icons, and detailed graphics.
ST7789 Driver for Broad Compatibility
Ensures reliable performance and easy integration with various MCUs and platforms.
Flexible Interface Options
Supports SPI for simple wiring and MCU parallel interface for faster data transfer.
Vivid Colors & Stable Brightness
TFT technology delivers bright, colorful visuals suitable for both indoor and outdoor readability.
Touchscreen Ready
Can be integrated with touch panels for interactive operation in smart devices.
Low Power Consumption
Optimized for portable and battery-powered devices such as IoT controllers and handheld meters.
Durable & Cost-Effective
Long service life with competitive pricing for consumer and industrial applications.
Versatile Applications
Perfect for wearables, IoT devices, smart home controllers, compact instruments, handheld electronics, and embedded systems.
Application of this 2.4 inch square display,
This square LCD Display is suitable for health monitors, wearable UIs, mini dashboards,Smart devices, IoT panels, DIY electronics, wearables, remote controller, music players,electronic toys,smart home,home automation, thermometers, data loggers and other applications.
