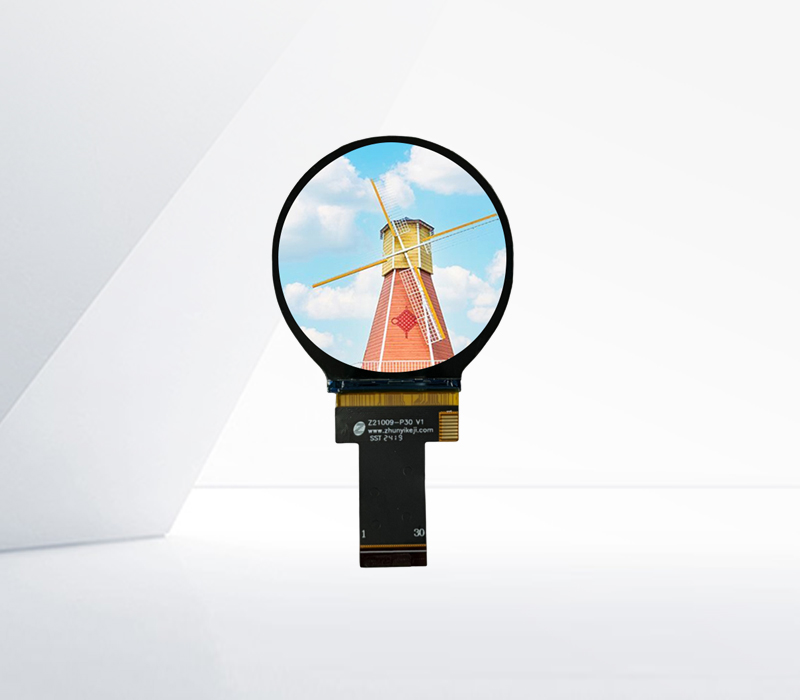

The liquid crystal display (LCD) module is a comprehensive assembly that integrates multiple components to deliver visual information. It serves as the core component in a wide range of electronic devices, from smartphones and tablets to laptops, monitors, and televisions. At its essence, an LCD module combines the liquid crystal panel, backlight unit, driver circuits, and other essential elements to create a functional display system.
The liquid crystal panel is the most critical part of the module. It consists of two glass substrates with a thin layer of liquid crystal material sandwiched between them. Liquid crystals have unique optical properties; when an electric field is applied, they change their orientation, which controls the passage of light. This property enables the panel to modulate light and create the images we see on the display. The panel is further divided into pixels, each of which can be individually controlled to display different colors and intensities, forming the complete visual content.
Driver circuits play a crucial role in the operation of the LCD module. These circuits receive digital or analog signals from the host device, such as a computer or a media player, and convert them into electrical signals that can control the liquid crystal panel. The driver circuits include a timing controller, which synchronizes the data flow and controls the refresh rate of the display, and source and gate drivers, which supply the appropriate electrical signals to each pixel on the panel.
Another essential component of the LCD module is the backlight unit. Since liquid crystals themselves do not emit light, a backlight is required to illuminate the panel. The backlight unit typically consists of light - emitting diodes (LEDs) or cold - cathode fluorescent lamps (CCFLs, although less common nowadays). LEDs are widely preferred due to their energy efficiency, long lifespan, and ability to provide uniform illumination. The backlight unit distributes the light evenly across the panel, ensuring consistent brightness and contrast in the displayed images.
In addition to these main components, an LCD module may also include polarizers, color filters, and alignment layers. Polarizers control the polarization of light passing through the liquid crystal panel, while color filters are used to create the different colors in each pixel. Alignment layers ensure that the liquid crystals are properly oriented at rest, which is essential for accurate image formation. All these components work in harmony within the LCD module to provide high - quality visual output, making it an indispensable part of modern display technology.
