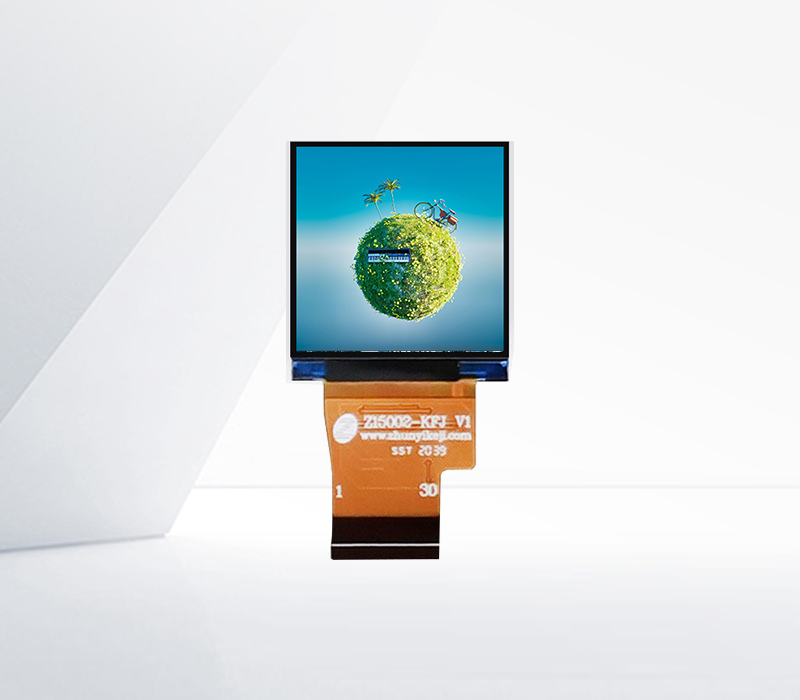

Highly integrated LCD modules are designed to pack a multitude of functions and components into a single, compact unit, revolutionizing the display industry by enhancing performance, reducing size, and improving reliability. These modules combine the core elements of an LCD, such as the liquid crystal panel, backlight, and driver ICs, with additional features like touch sensors, controllers, and even wireless communication modules.
The integration process starts with the miniaturization and optimization of individual components. Advanced semiconductor manufacturing techniques are used to create smaller and more powerful driver ICs that can handle high - resolution displays and complex image processing tasks. These ICs are then closely integrated with the liquid crystal panel, often through techniques like chip - on - glass (COG) or chip - on - film (COF), which directly attach the ICs to the panel, reducing the overall footprint. The backlight unit is also optimized, with the use of thin - film transistors (TFTs) and advanced LED technology to provide uniform and efficient lighting while minimizing thickness.
In addition to the basic display components, highly integrated LCD modules may incorporate touch - screen technology. Capacitive or resistive touch sensors can be integrated directly onto the surface of the LCD panel, eliminating the need for a separate touch - screen layer. This not only reduces the overall thickness of the module but also improves touch sensitivity and accuracy. Some modules even integrate controllers that manage both the display and touch functions, streamlining the communication between different components and improving the overall user experience.
Another aspect of high integration is the inclusion of wireless communication modules. In modern applications, such as smart displays and IoT - enabled devices, the ability to communicate wirelessly is essential. Highly integrated LCD modules can embed Wi - Fi, Bluetooth, or other wireless communication technologies, allowing the display to connect directly to other devices or networks without the need for external adapters. This integration simplifies the device design and enables more seamless interaction between the display and its surroundings.
Highly integrated LCD modules are widely used in various high - end consumer electronics, such as smartphones, tablets, and laptops. In these devices, the compact size and enhanced functionality of the modules contribute to sleeker designs and better performance. They are also increasingly popular in industrial applications, such as human - machine interfaces (HMIs) in automation systems, where the integration of multiple functions into a single module improves reliability and ease of use.
