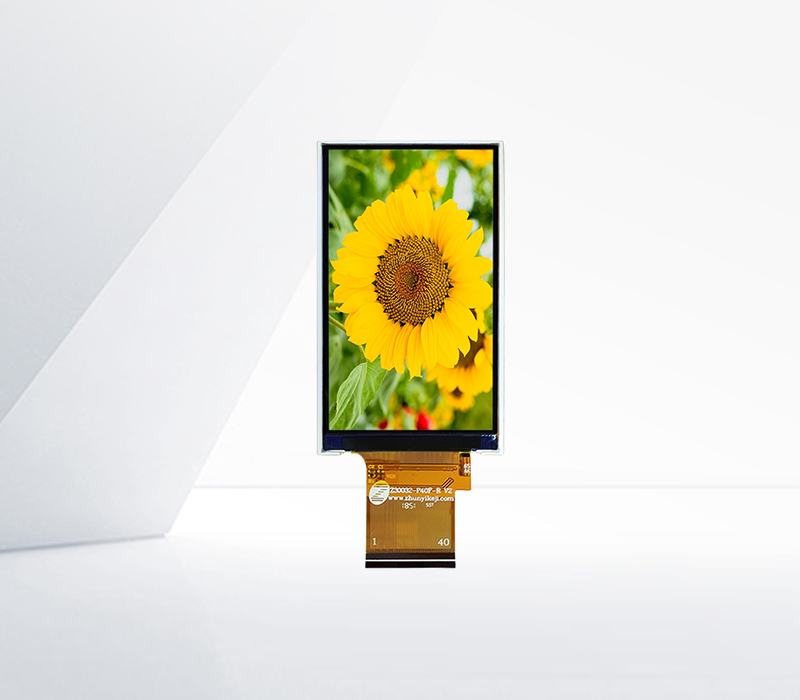

Backlit LCD modules are designed to enhance the visibility of the display by providing an internal light source. LCDs themselves are not emissive devices; they rely on controlling the passage of light through the liquid - crystal layer to create images. Without a backlight, LCDs would be difficult to view in low - light or dark environments.
The backlight in an LCD module typically consists of one or more light - emitting diodes (LEDs), although in some older designs, cold - cathode fluorescent lamps (CCFLs) were used. LEDs have become the preferred choice due to their long lifespan, low power consumption, fast response times, and compact size. The LEDs can be arranged in different configurations, such as edge - lit or direct - lit.
In edge - lit backlights, the LEDs are placed along the edges of the LCD panel, and light is guided to the entire display area using light - guide plates and diffusers. This design results in a thinner LCD module, making it suitable for applications where space is at a premium, such as in smartphones, tablets, and thin - profile laptops. Direct - lit backlights, on the other hand, have LEDs distributed across the entire back of the LCD panel. This configuration can provide more uniform illumination and higher brightness levels, making it ideal for larger displays like monitors and televisions.
The brightness of the backlight can be adjusted through various methods. One common approach is pulse - width modulation (PWM), where the microcontroller controlling the LCD module varies the duty cycle of the electrical signal sent to the LEDs. A higher duty cycle results in a brighter backlight, while a lower duty cycle reduces the brightness. This feature allows users to customize the display's brightness according to ambient lighting conditions, conserving power when less brightness is required.
Backlit LCD modules are essential in a vast array of applications. In automotive cockpits, the backlight ensures that the instrument cluster and infotainment displays are clearly visible during both daytime and nighttime driving. In medical devices, such as patient monitors and diagnostic equipment, the backlight provides consistent and accurate visibility of critical information. Additionally, in consumer electronics like digital cameras and e - readers, the backlight enhances the user experience by enabling comfortable viewing in different lighting scenarios. However, the presence of a backlight also adds to the power consumption of the LCD module, which is an important consideration in battery - powered devices.
